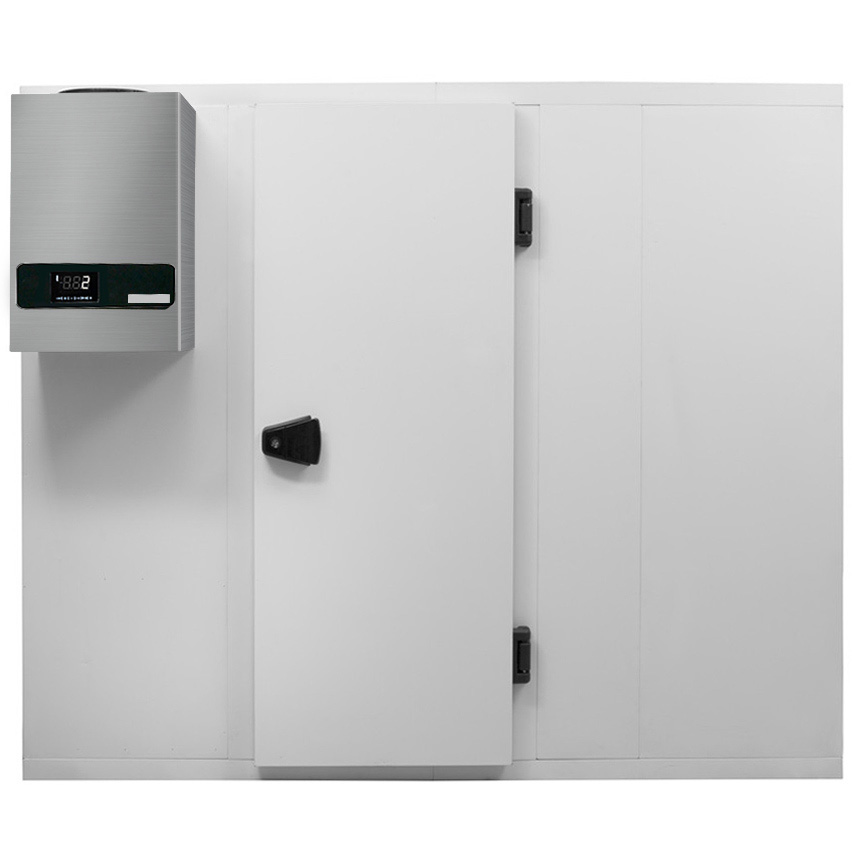

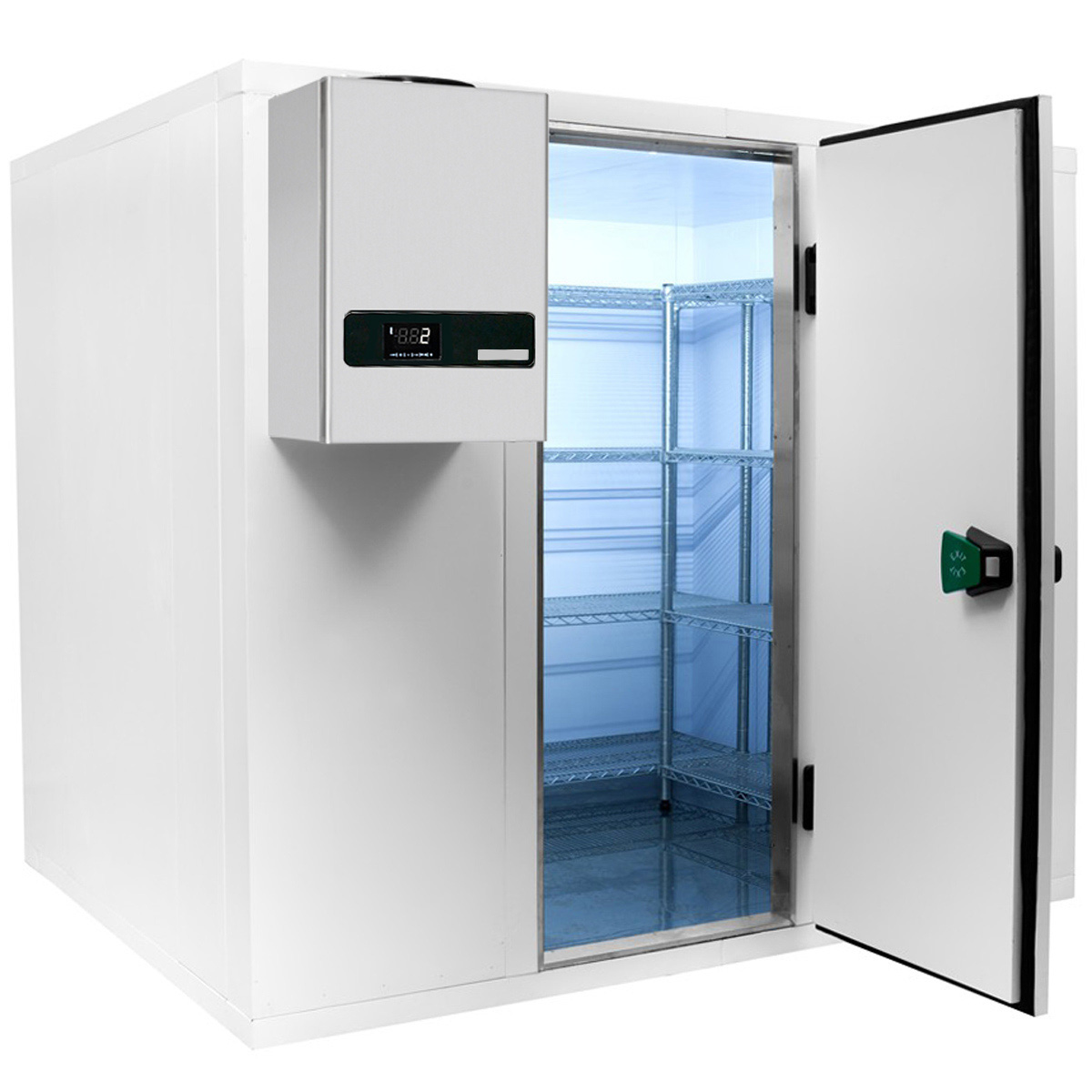

Refrigeration cell - 2100 x 2100 mm - new

Design of the Cooling Cell

• cooling room + wall cooling unit!
• Unit installed tightly into panel for refrigeration cell
• Quality product
• Particularly hygienic due to easy cleaning
• Lots of space despite compact design
• Optimal for stock-keeping
• Rounded corners
• Long service life

Quality

• Extra-class wall unit
• Compact and robust construction
• Top-quality insulation values through the use of polyurethane
• Quality product made in Europe

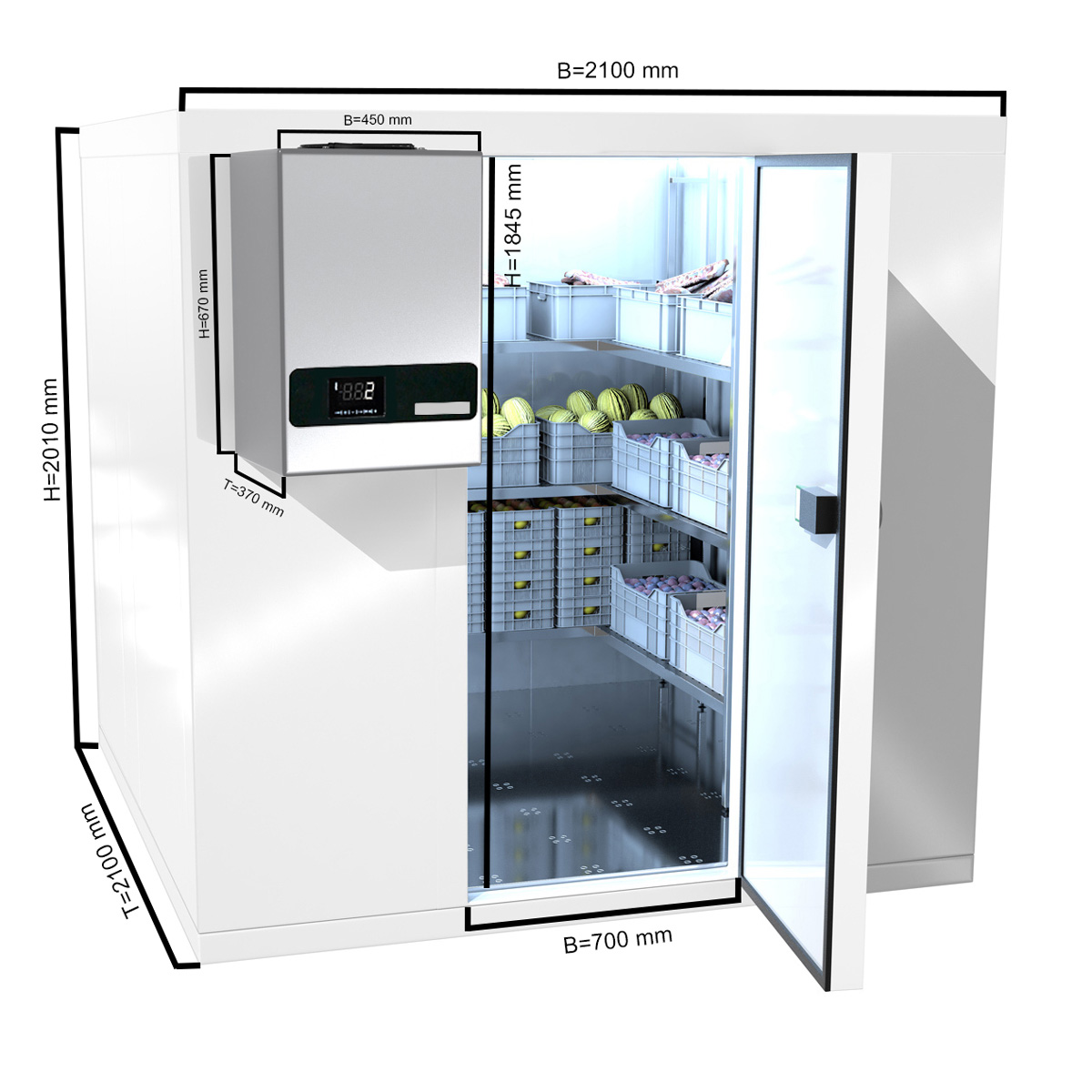

Dimensions Cooling Cell

• External dimensions (WxDxH): 2100 x 2100 x 2010 mm
• Internal dimensions (WxDxH): 1940 x 1940 x 1850 mm
• Door internal dimensions (WxH): 580 x 1845 mm

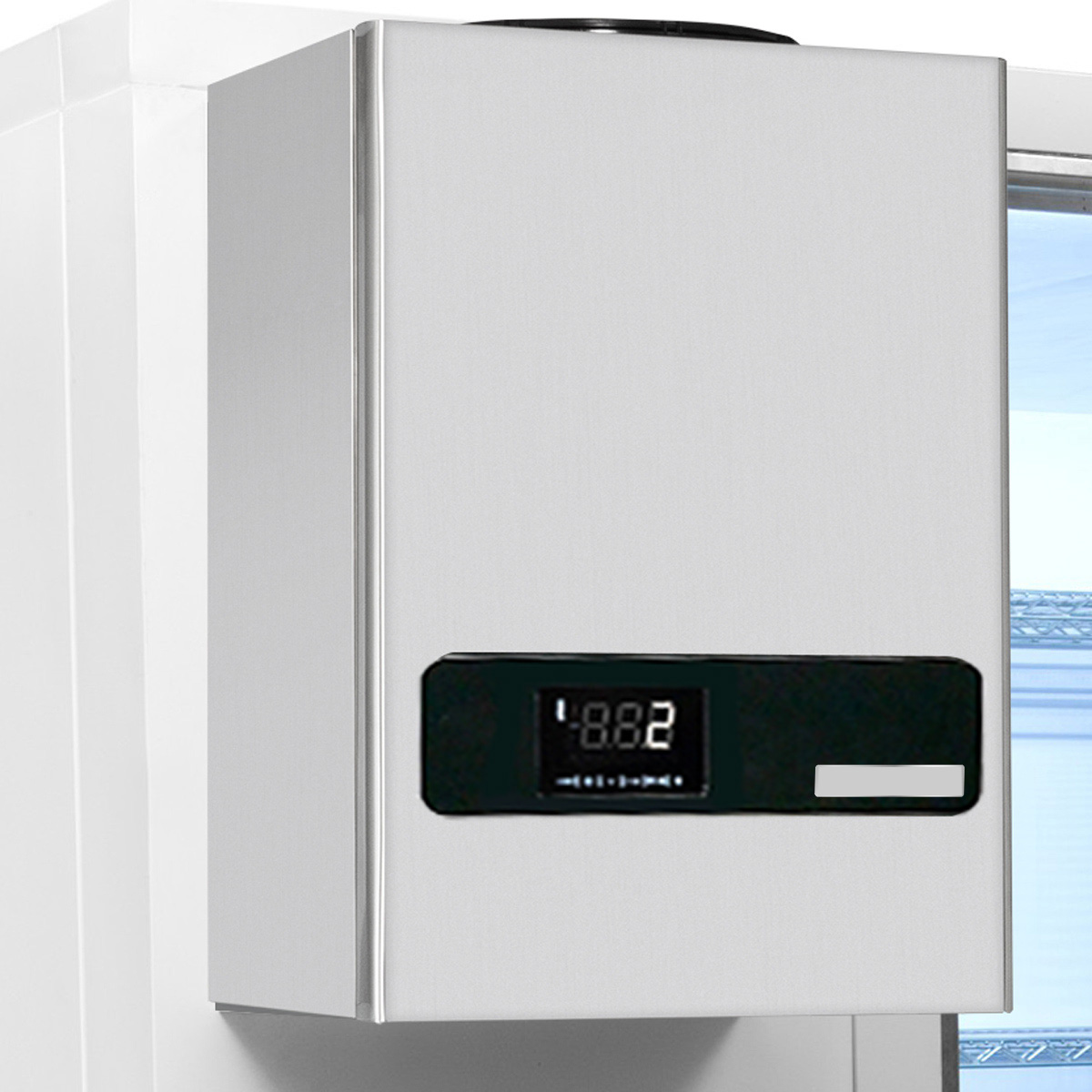

Dimensions Aggregate

• External dimensions (WxDxH): 540 x 890 x 1880 mm

Connection of the Aggregate

• 230 V / 1PH - 50 Hz (at a cold room temperature of 0 ° C)

Details

• Volume 6,9 m³
• Cooling medium R 452a
• Surface colour RAL 9002
• Permitted load/rubber wheel 185 kg
• Insulation thickness 42 kg per cubic metre
• Material thickness 0,5 mm
• Insulation 80 mm

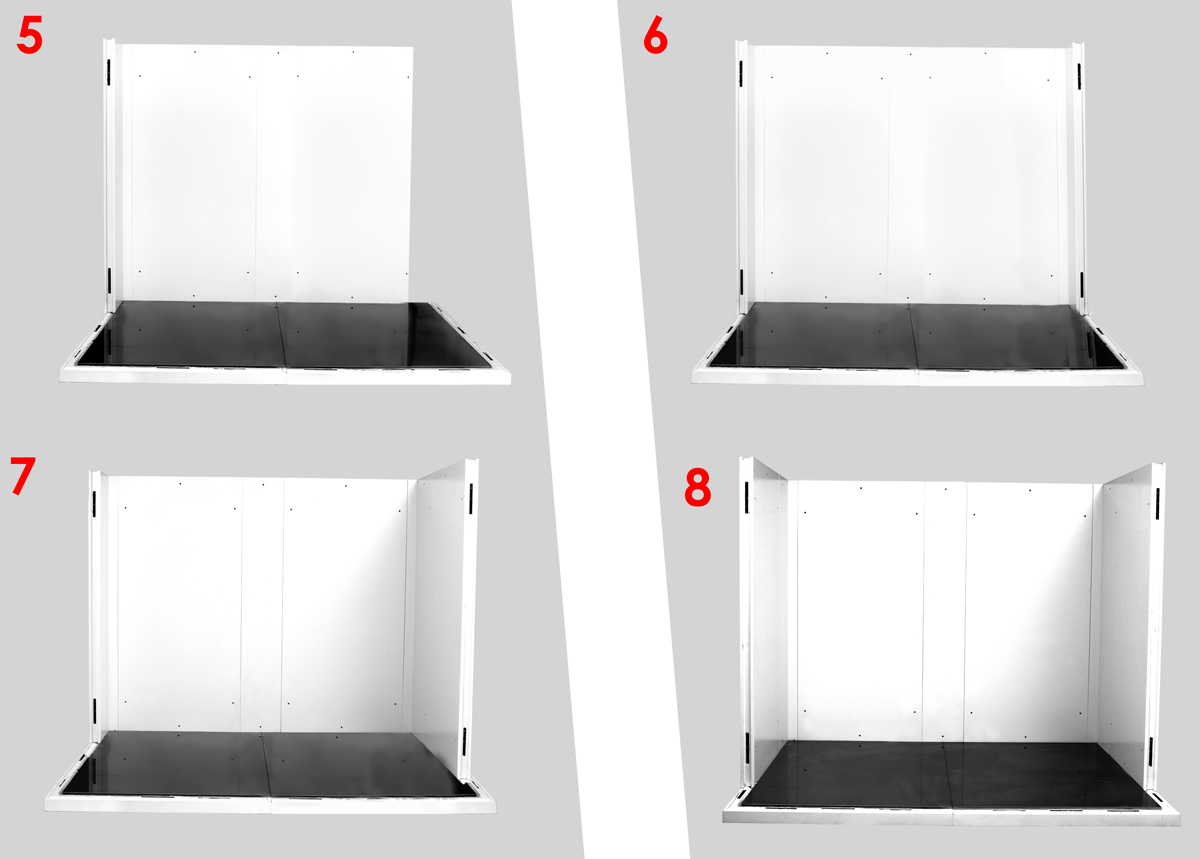

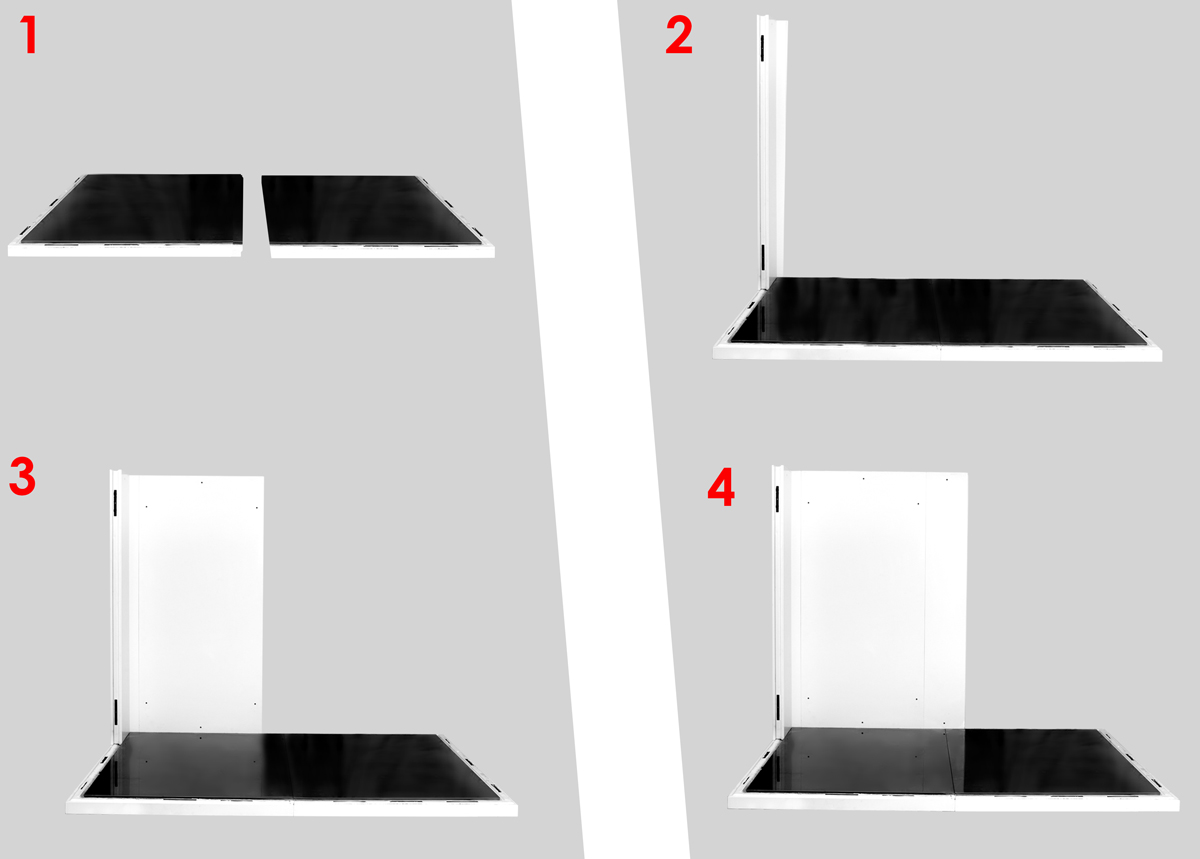

Wall construction

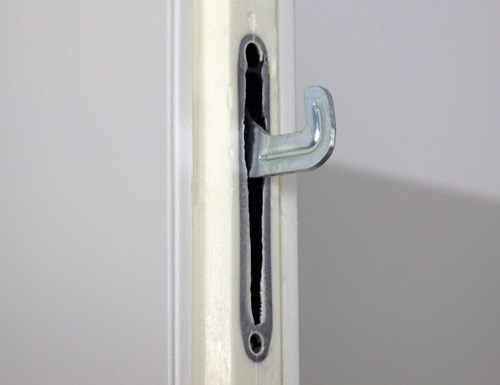

• Corrosion-resistant turnbuckles create stability & joint sealing
• Foamed turnbuckles for non-positive connection of elements
• Easy mounting

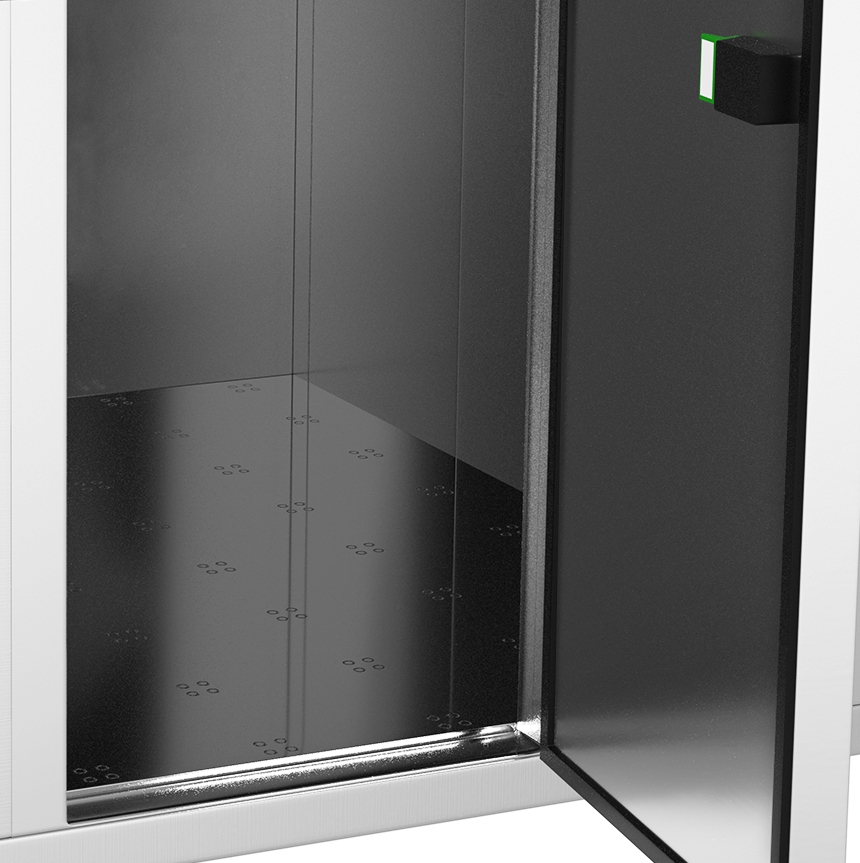

Cell floor

• Floor with embossed surface for maximum adhesion

Refrigeration

• On / off switch
• Temperature: 0 °C to +8 °C
• Refrigerant: R 452a
• Air cooled condensers
• Automatic defrosting can be programmed by a regulator
• Strong and consistent cooling with external temperatures of up to +43 °C

Insulation

• Wall strength 80 mm polyurethane (free of HFC and CFC)
• Corresponding to the EU guidelines (Halon regulations)
• Particularly energy-efficient due to the insulation at the top
• Top-quality insulation values through the use of polyurethane

Surface

• Colour: white, RAL 9002
• All elements also equipped with protective foil
• Protective foil can be removed after assembly

Door features

• Lockable
• Interior with integrated emergency opening device
• Door sealing strips guarantee top-quality seals
• Stainless steel door sill

Guidelines

• Produced according hygiene and safety requirements
• Meets CE standards
• Material corresponds to the European Food Product Standards

OPTIONAL ACCESSORIES:

• Shelves
• Cold protection segment

Delivery

• Shipping type forwarding agency
• Delivery condition dismantled
• Weight 464 kg
