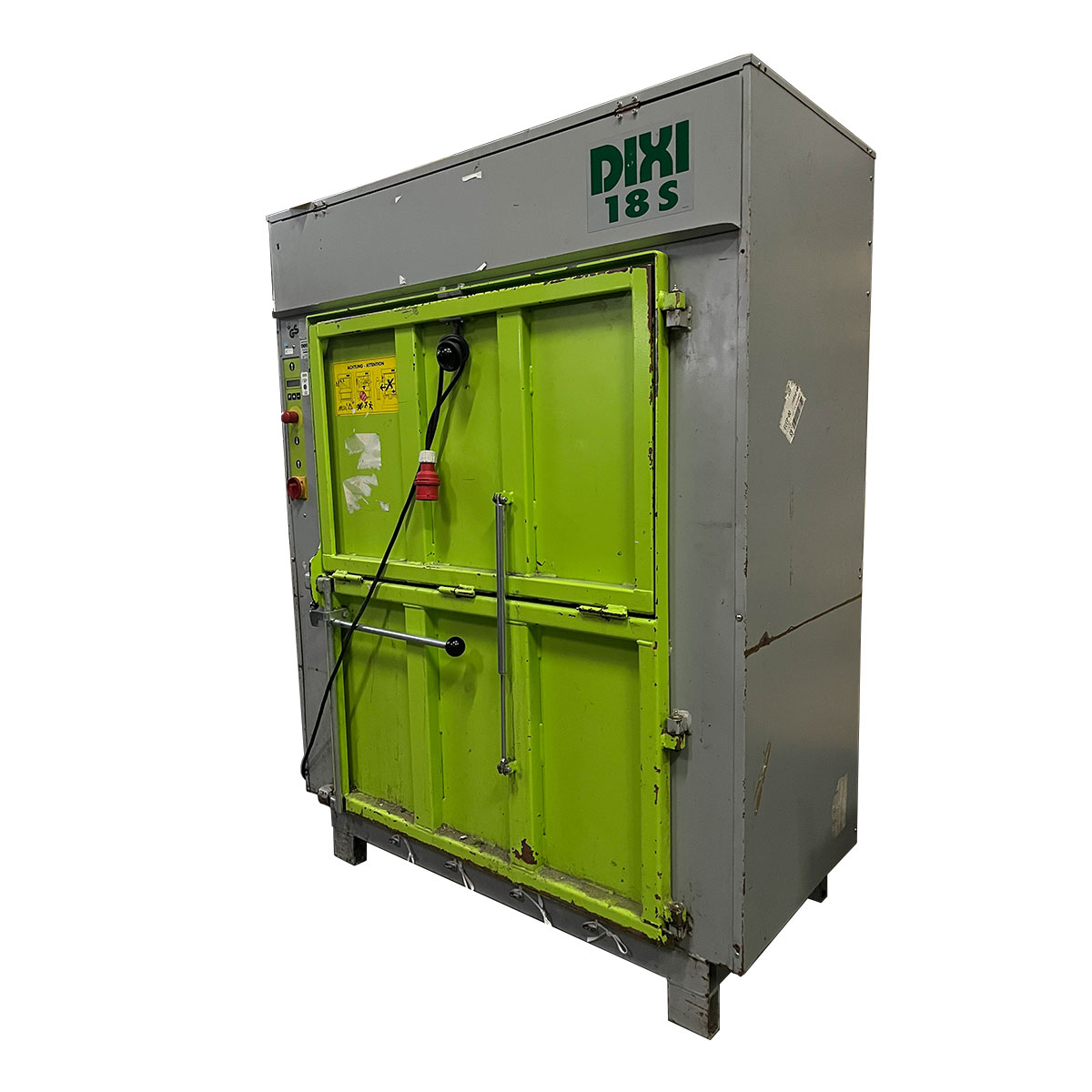

Baler / Paper Press DIXI 18 S - used

The baler model DIXI 18 S with 18 t pressing force is the little brother of the large balers! The baler is particularly suitable for use in retail or small to medium-sized industrial companies. It is ideal for pressing film and cardboard. The switch from cardboard to film is possible at the push of a button using the simplest technology. The special setting "film" prevents the film from expanding. The automatic bale ejector ensures easy handling when ejecting the pressed bale weighing up to 180 kg.

Design:

• For cardboard and foil

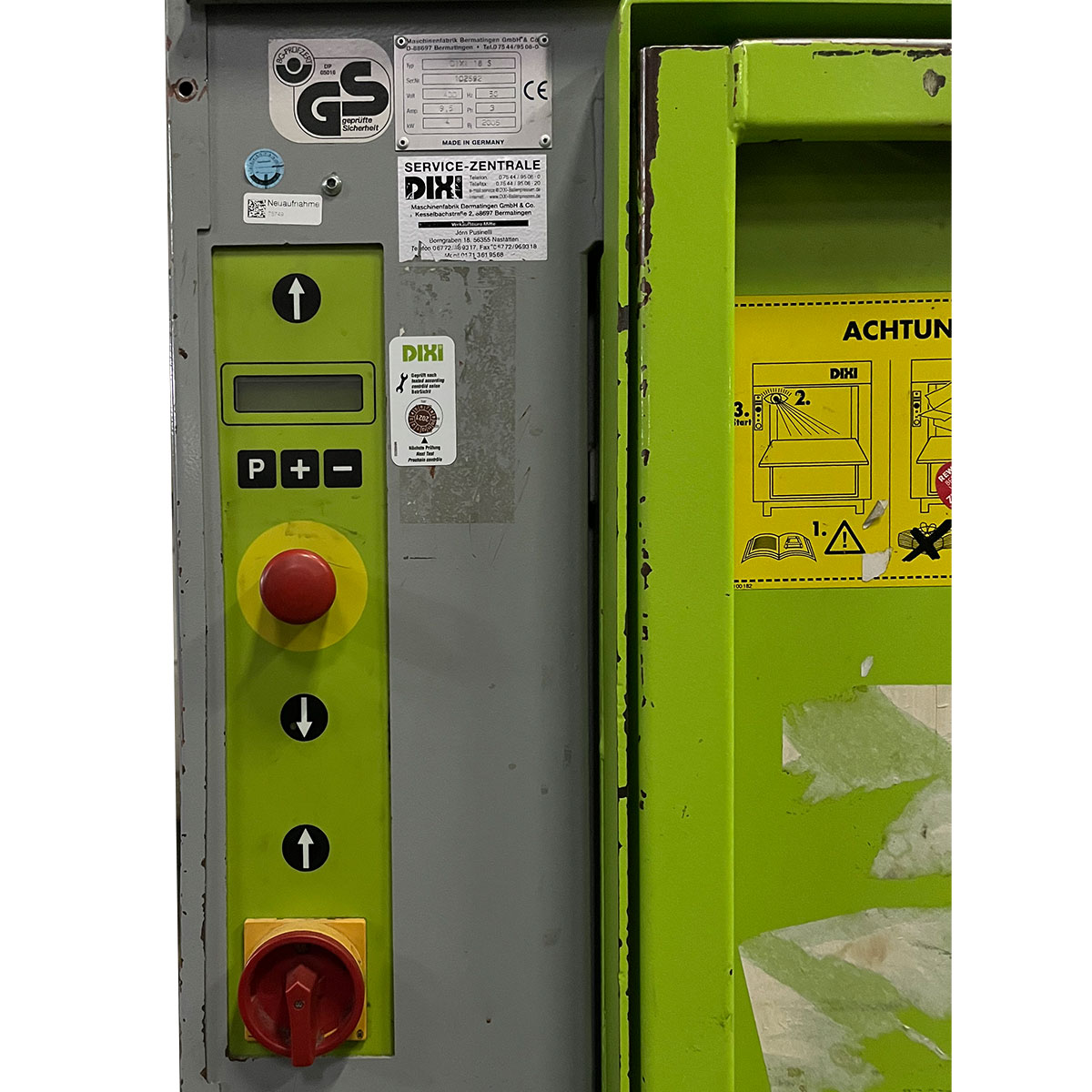

• Microprocessor control
• Low maintenance
• Automatic start function when the filling flap is closed - automatic return stroke
• The two-stage hydraulics guarantee a rapid pressing cycle
• High pressing force with low hydraulic pressure and low drive power

Technical details:

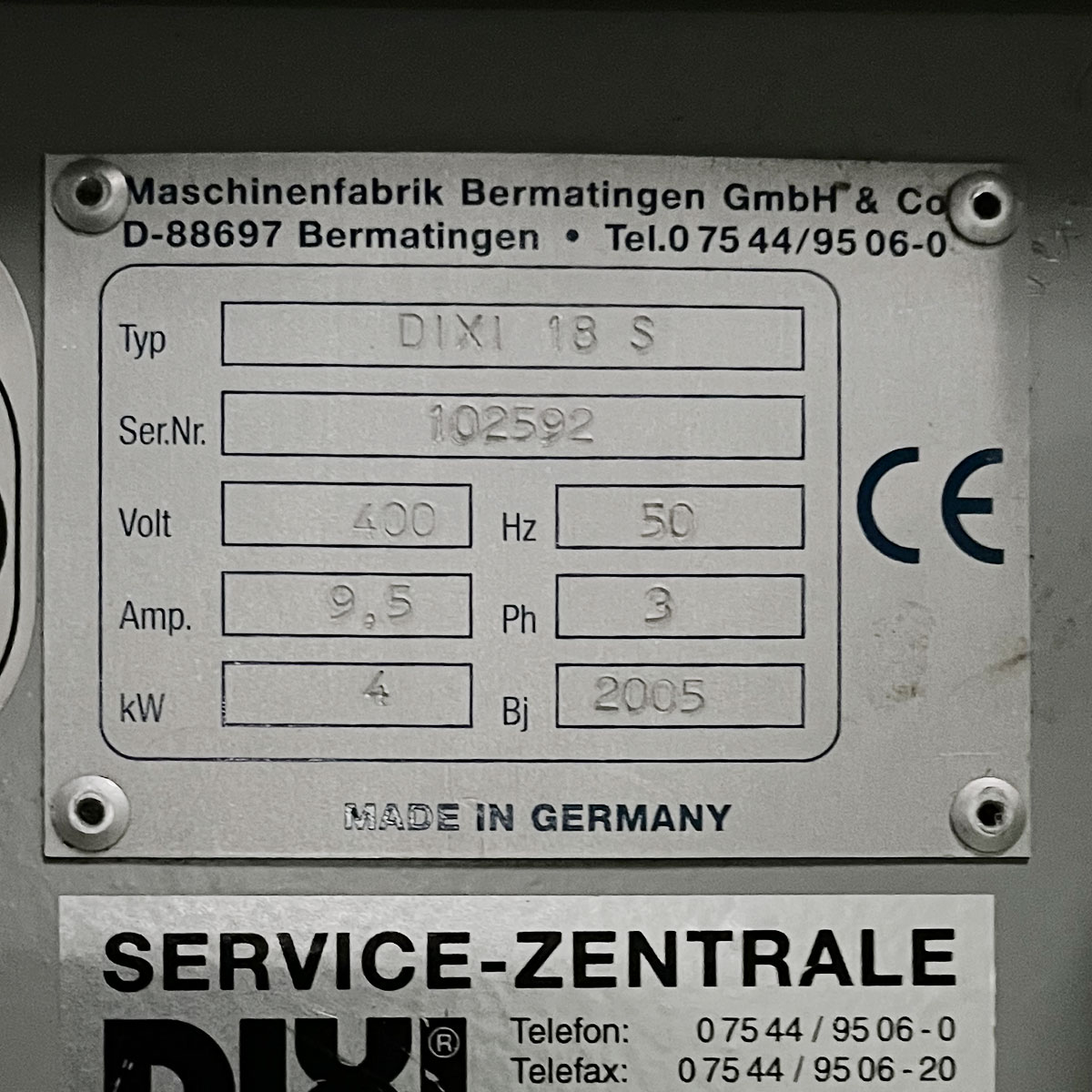

• Manufacturer: Dixi
• Model: 18 S
• Motor: 4 kW
• Connection voltage: 400 /50 V/Hz
• Max. pressing force: 180 kN
• Cycle time: 22 s
• Pressing time: 12 s

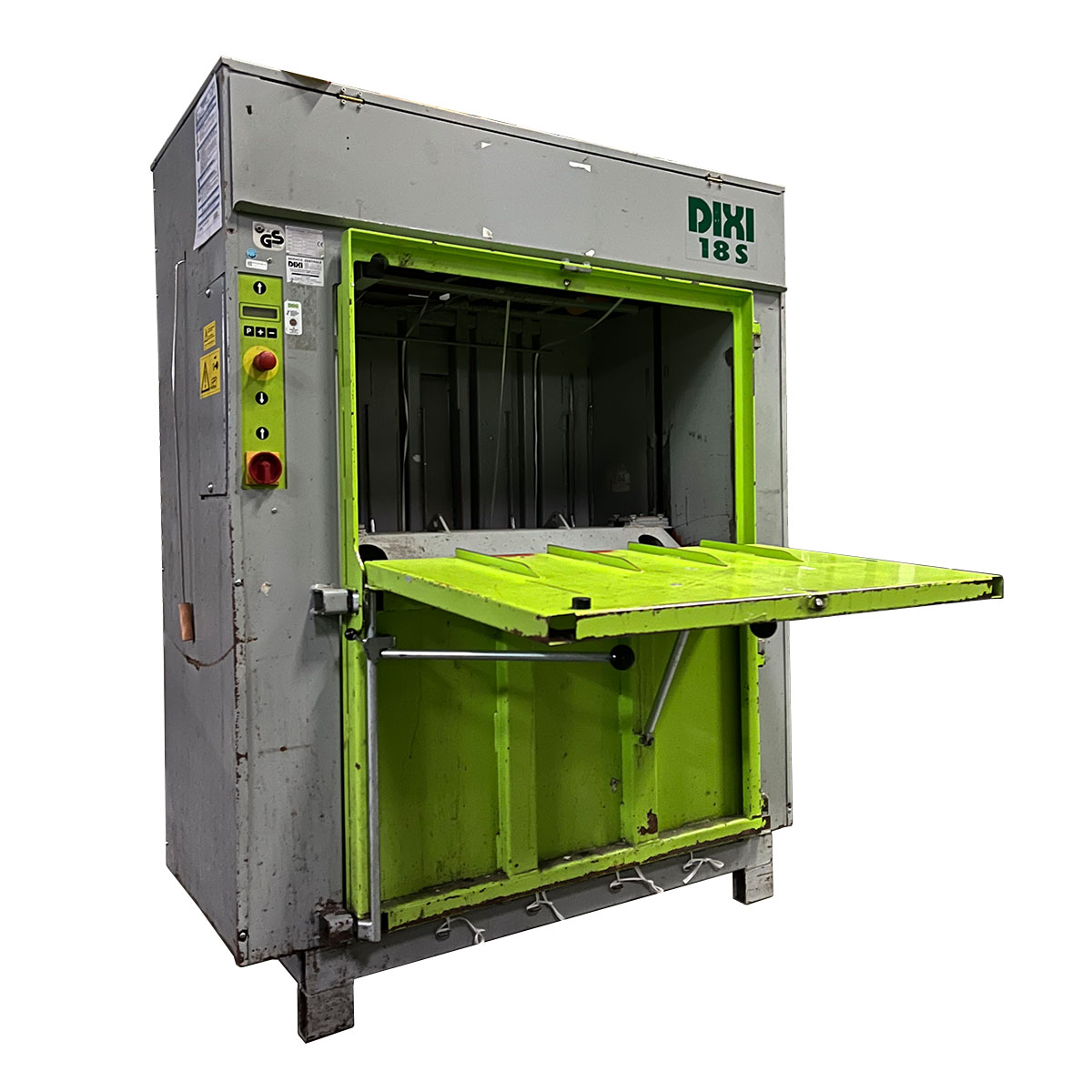

• Inlet opening (WxH): 1,070 mm x 620 mm

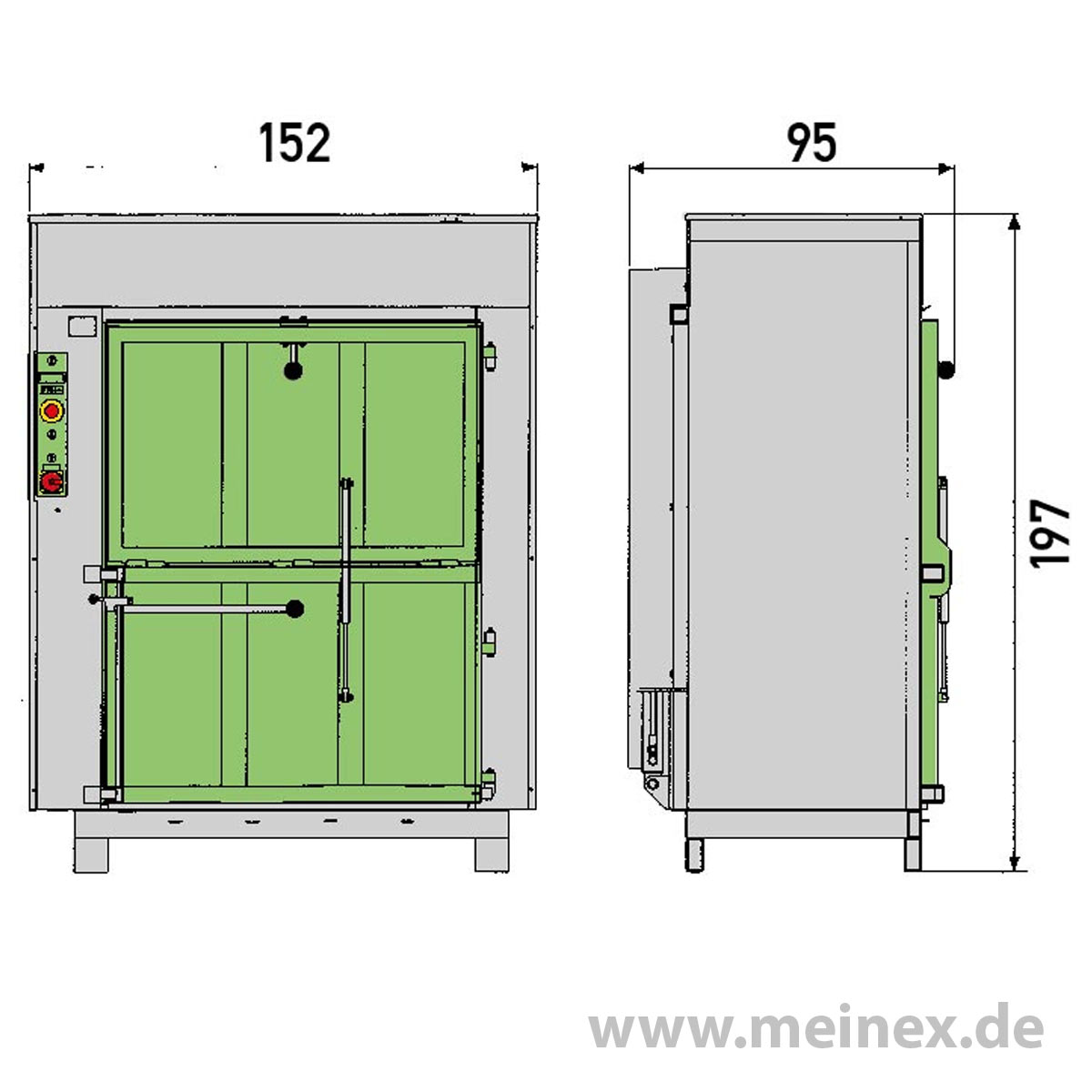

• Width: 1,520 mm
• Depth: 950 mm
• Height: 1,970 mm
• Weight: 850 kg
• Year of manufacture: 2005

Bale parameters:

• Width: 1,100 mm
• Depth: 700 to 800 mm
• Height: 700 mm
• Bale weight: 120 - 180 kg
• The bale height is adjustable and depends on the material being pressed.

Bale presses - recycling with the highest efficiency

Bale presses are suitable for many waste disposal and waste processing needs. A bale press is able to process materials in a space-saving manner so that they can be efficiently transported or recycled. The volume of waste or material quantities is reduced by an average of 95% through compaction. The compact bales are stackable and ideally suited for further recycling. The area of ​​application includes packaging made of cardboard, paperboard, plastic, metal, production waste, PET bottles and other materials. Typical sectors in which bale presses are used are industry & production, recycling & disposal, logistics & forwarding, retail, food & beverage industry.

Note:

For transport reasons, the press will be delivered partially disassembled. Assembly of the hydraulic ram must be carried out by qualified personnel only!
