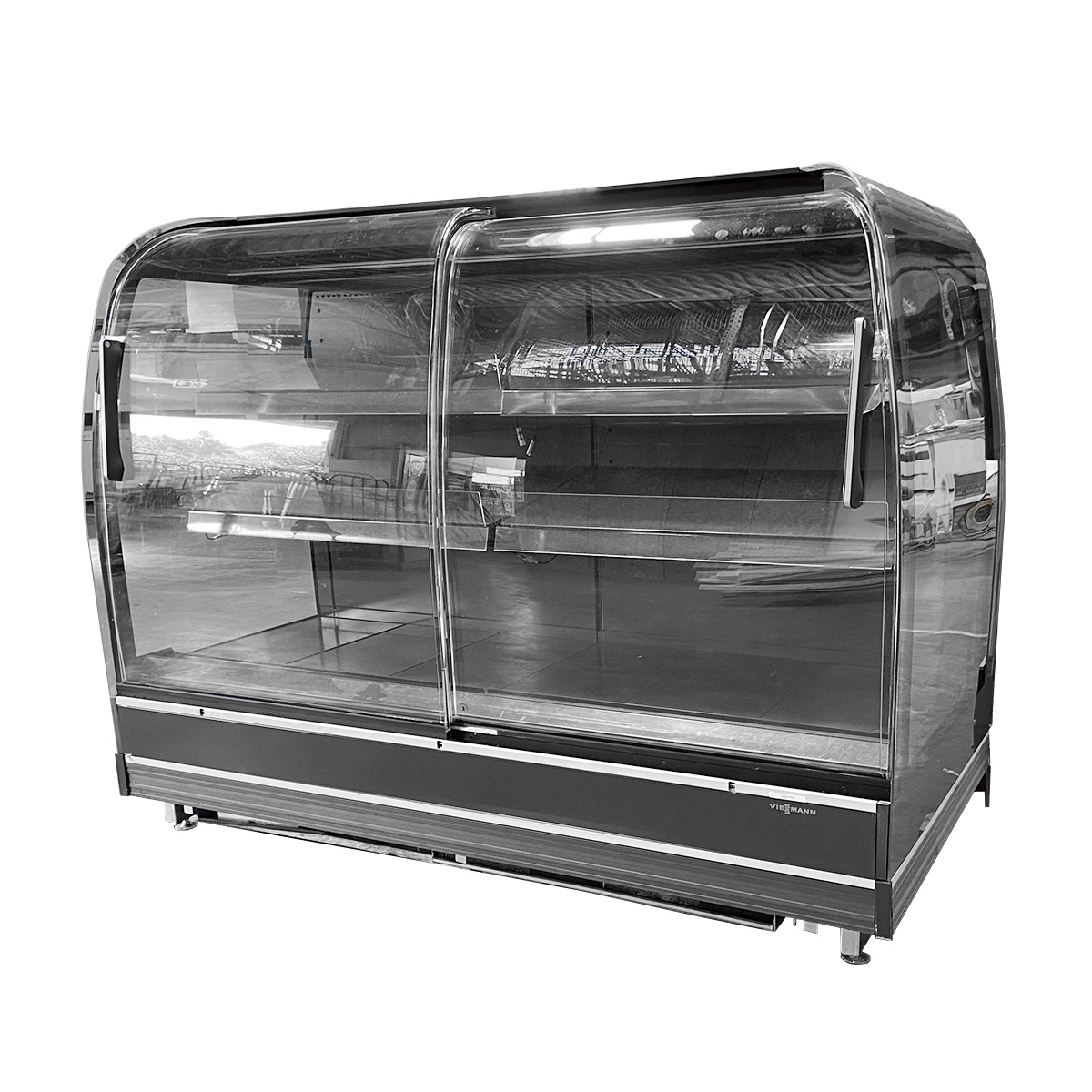

Refrigerated shelf Tecto Deck SV3 Viessmann - length 2100 mm - used

The TectoDeck SV3 offers more efficient merchandising options with attractive product presentation through different display levels.

Design of the wall refrigerated shelves:

• Manufacturer: VIESSMANN

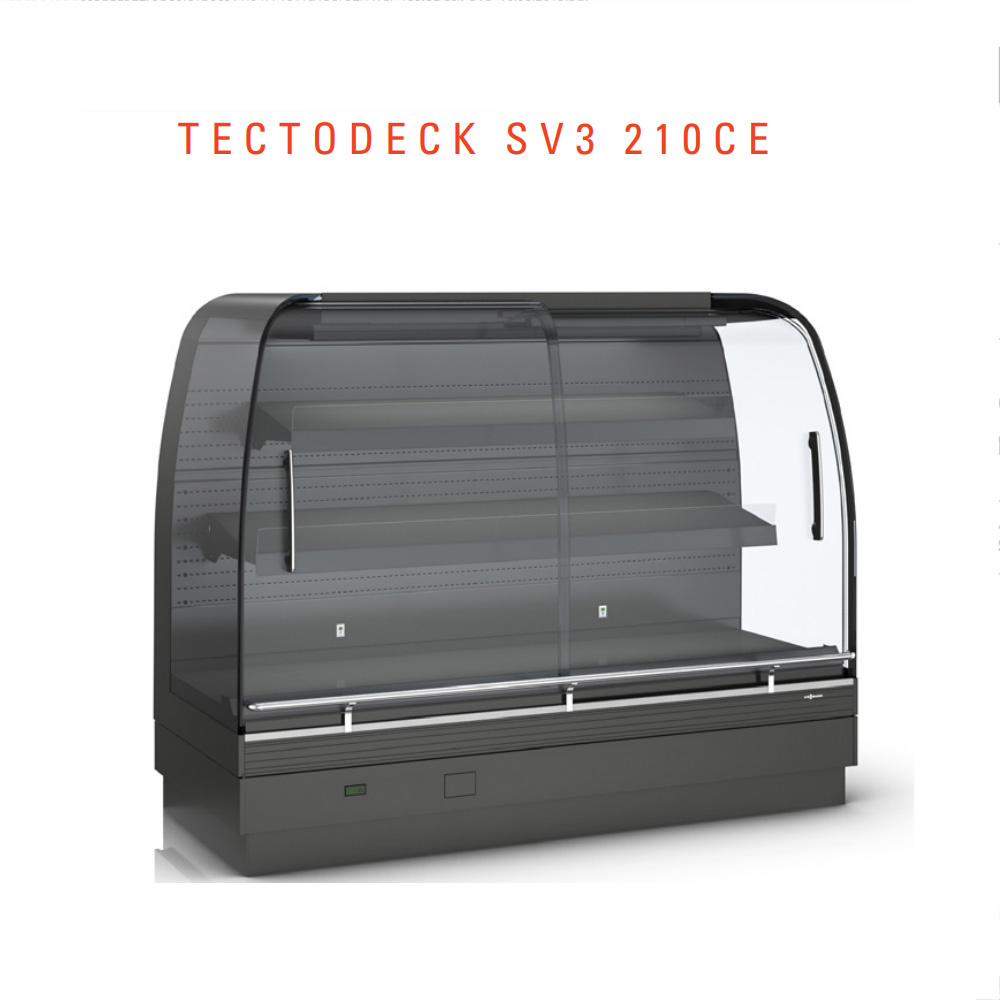

• Model: 1x TECTODECK SV3 210CE
• 2 rows of shelves + bottom shelf
• Best view of goods
• Ergonomically optimized design
• Easy loading and unloading of goods
• More assortment depth & larger display area
• Environmentally friendly refrigerant
• Easy cleaning and service
• Flexible installation options in the store with only one power connection (230V) possible
• Ready-to-plug half-height refrigerated shelf
• Combined cooling from brine and environmentally friendly refrigerant propane
• Possibility of single or gondola installation
• Electronic control (worm)
• VI LED lighting red and white
• Panoramic sliding windows
• Panoramic/mirror side walls
• Year of construction: 2018

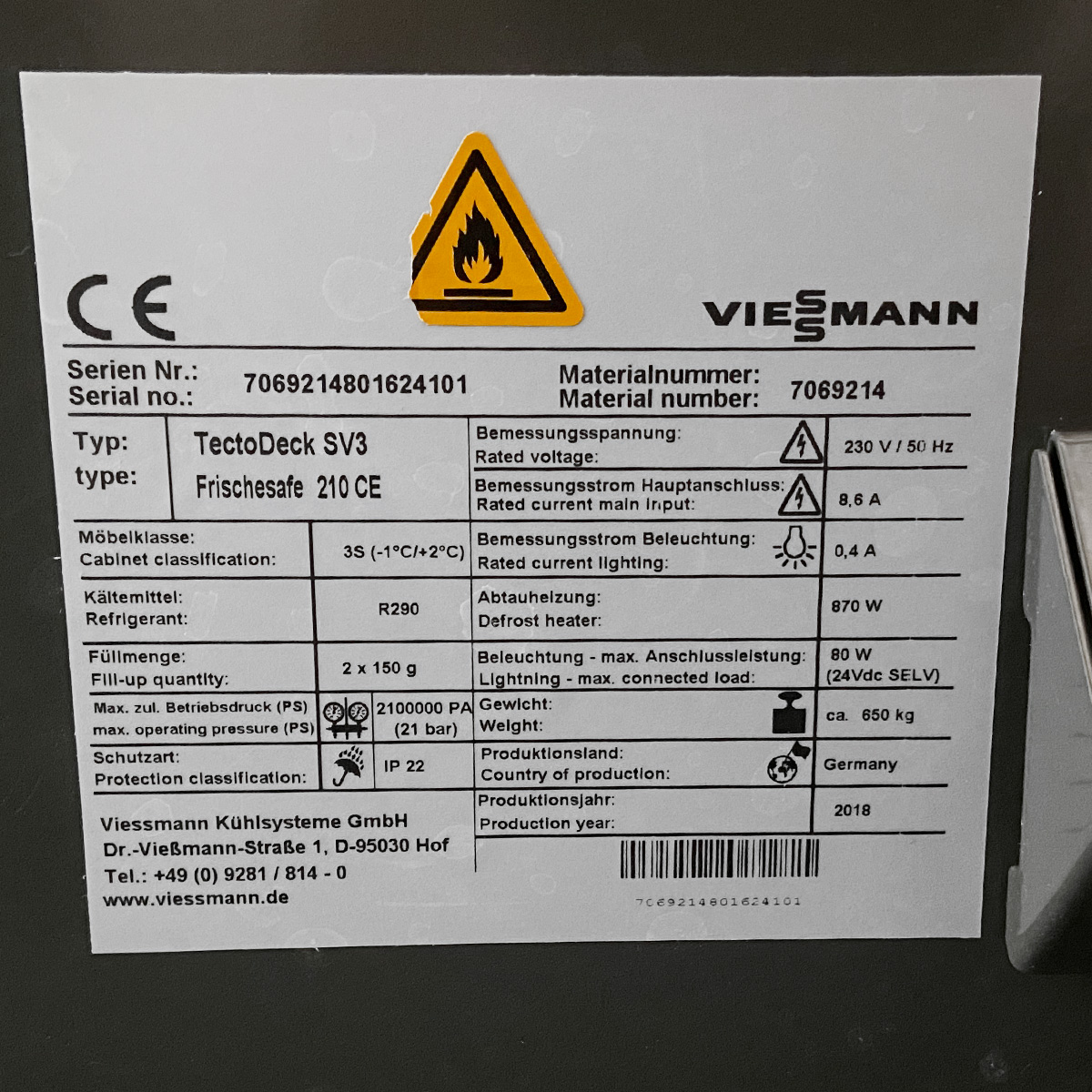

Technical details:

• Length: 2100mm
• Depth: 1075mm
• Height: 1600mm
• Temperature range: -1°C to +2°C
• Electrical supply: 230 V / 50 Hz
• Refrigerant: R290
• Energy consumption/24h: 28.54 kWh
• Defrost heater: 870 W
• Lighting - max. connected load: 80 W
• Rated current main connection: 8.6 A
• Rated current lighting: 0.4 A
• Installation area: 2.35 m²
• Goods presentation area: 2.02 m²
• Net volume: 828 l
• Capacity: 2 x 150 g
• Degree of protection: IP22
