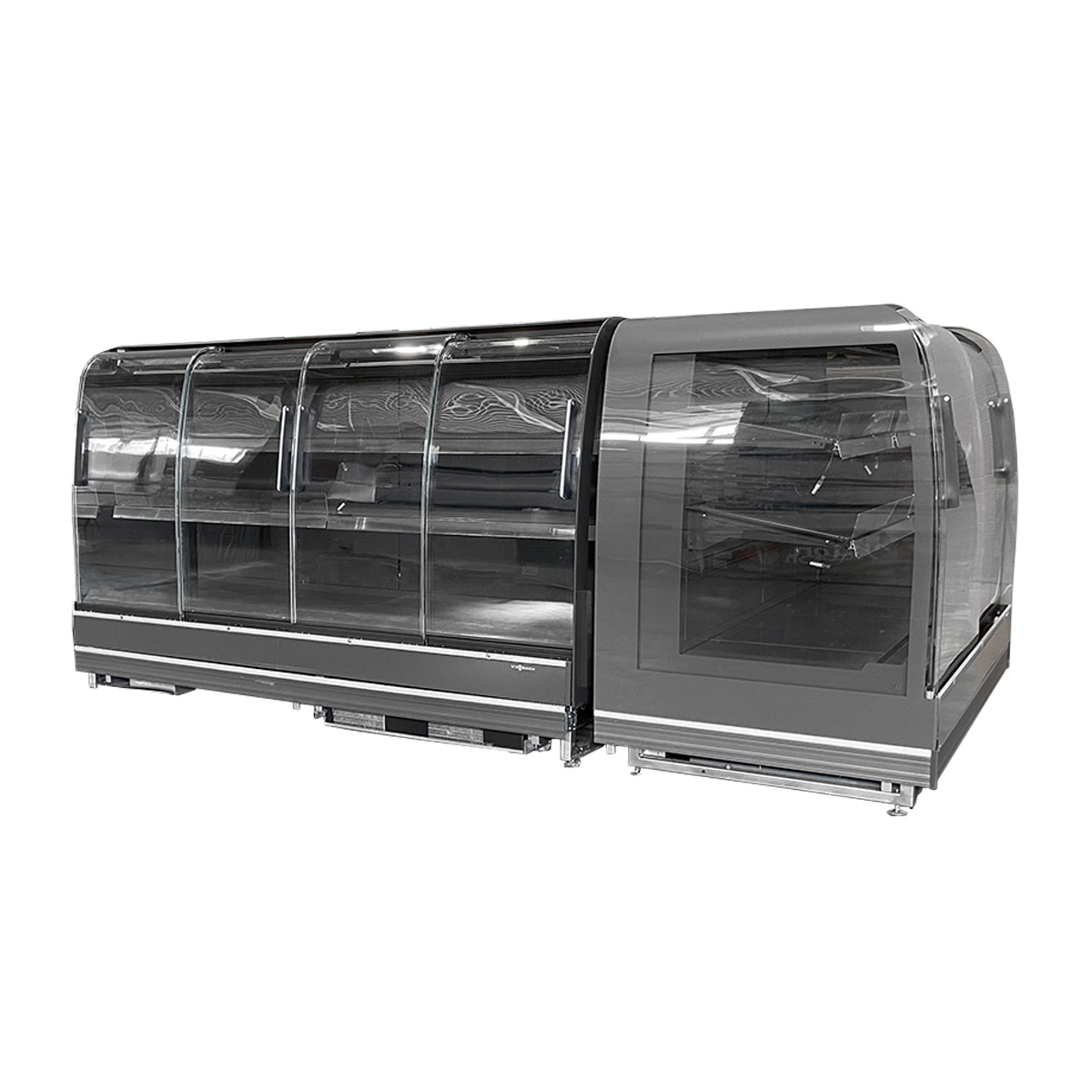

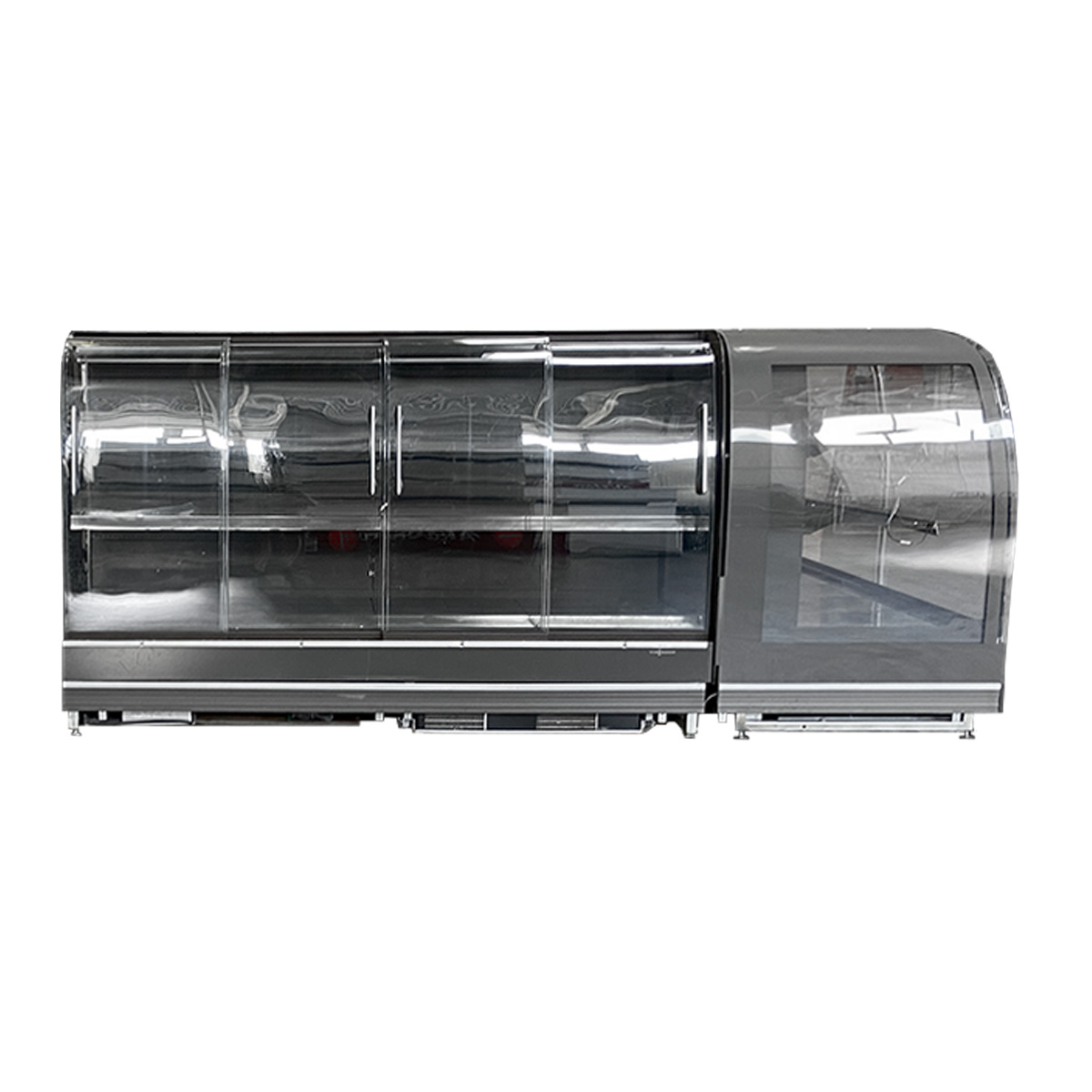

Refrigerated shelf - Viessmann - TectoDeck SV3 - 3.6 m - used

The TectoDeck SV3 offers more efficient merchandising options with attractive product presentation through different display levels.

Design of the wall refrigerated shelves:

• Manufacturer: VIESSMANN
• Model: 1x TECTODECK SV3 210CE + 2x TECTODECK SV3 250
• 2 rows of shelves + bottom shelf
• Best view of goods
• Ergonomically optimized design
• Easy loading and unloading of goods
• More assortment depth & larger display area
• Environmentally friendly refrigerant
• Easy cleaning and service
• Flexible installation options in the store with only one power connection (230V) possible
• Ready-to-plug half-height refrigerated shelf
• Combined cooling from brine and environmentally friendly refrigerant propane
• Possibility of single or gondola installation
• Electronic control (worm)
• VI LED lighting red and white
• Panoramic sliding windows
• Panoramic/mirror side walls
• Year of construction: 2018

Technical details:

• Total length: 3600mm
• Depth: 2100mm
• Height: 1600mm
• Temperature range: -1°C to +2°C
• Electrical supply: 230 V / 50 Hz
• Refrigerant: R290

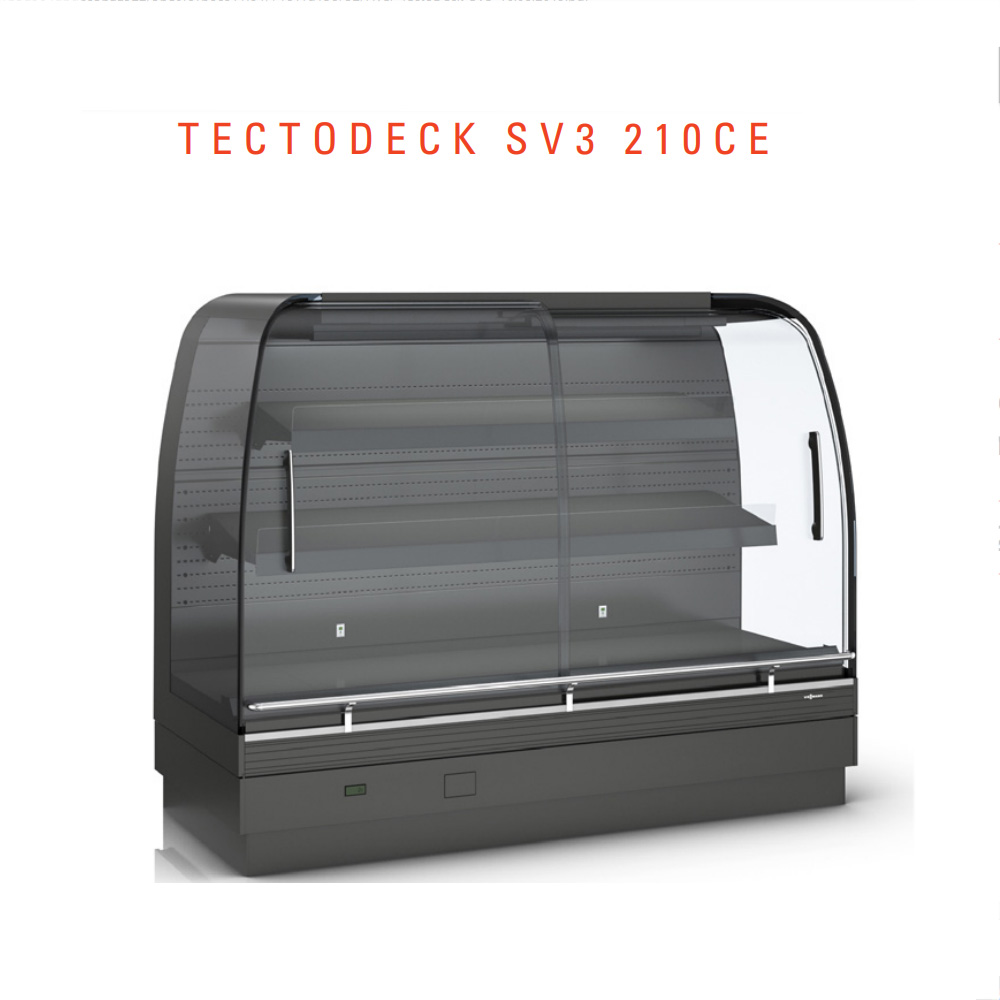

• Model TECTODECK SV3 210CE:
• Length: 2100mm
• Depth: 1075mm
• Height: 1600mm
• Energy consumption/24h: 28.54 kWh
• Installation area: 2.35 m²
• Goods presentation area: 2.02 m²
• Net volume: 828 l

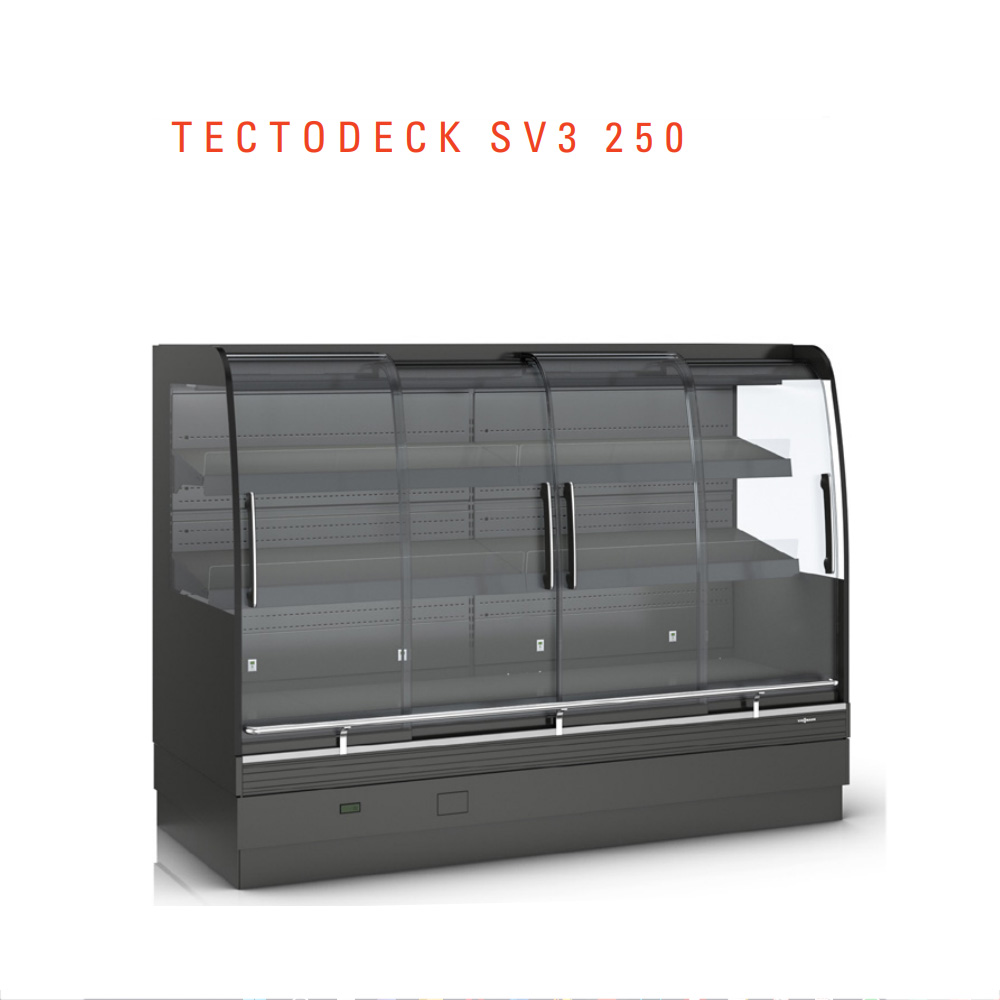

• Model TECTODECK SV3 250:
• Length: 2552mm
• Depth: 1075mm
• Height: 1600mm
• Energy consumption/24h: 32.16 kWh
• Installation area: 2.86 m²
• Goods presentation area: 2.46 m²
• Net volume: 1010 l
