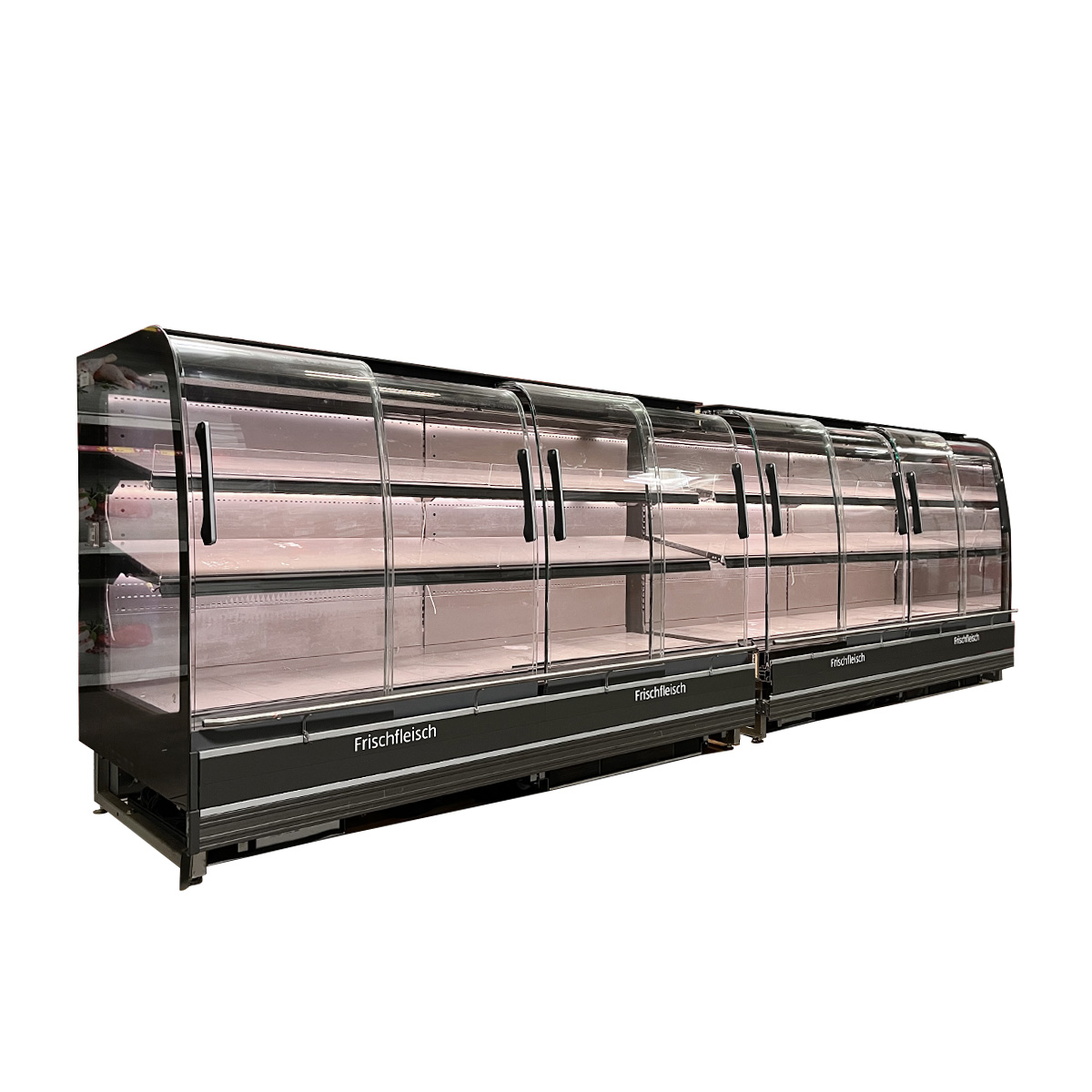

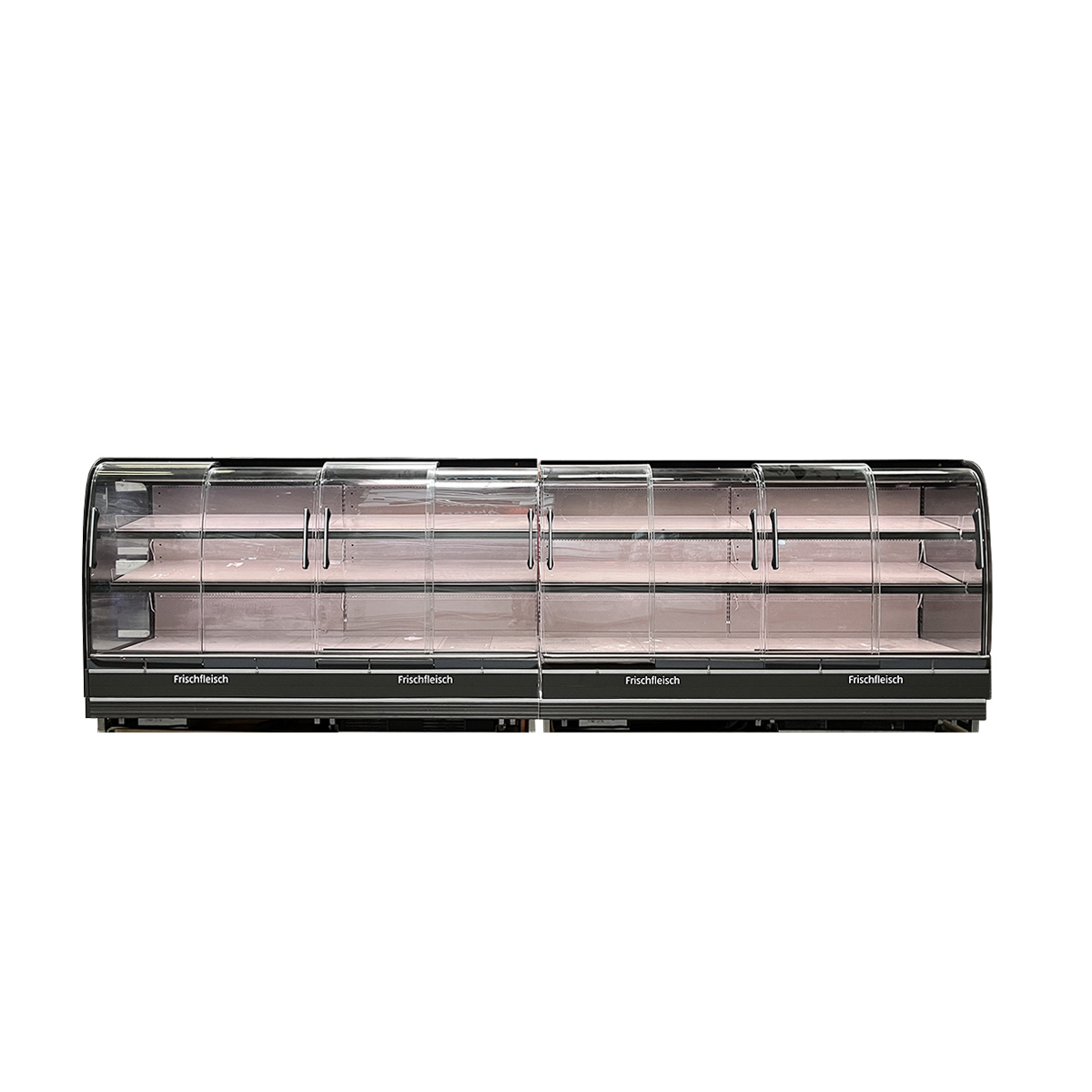

Viessmann TectoDeck SV3 refrigerated display cabinet - length 5,000 mm - used

The Viessmann refrigerated display model TectoDeck SV3 offers you an excellent solution for the attractive and efficient presentation of chilled goods. With a length of 5 metres, this refrigerated display is ideal for supermarkets, grocery stores and other retail environments that require reliable and large-scale cooling.

Design:

• Manufacturer: VIESSMANN
• Model: 2x TectoDeck SV3 Freshness Safe 250
• 2 rows of shelves + lower shelf
• Best product visibility
• Ergonomically optimized design
• Easy loading and unloading of goods
• More product range & larger display area
• Environmentally friendly coolant
• Easy cleaning and service
• Flexible installation options in the store with only one power connection (230V) possible
• Plug-in half-height refrigerated shelf
• Combined cooling from brine and environmentally friendly coolant propane
• Option for individual or gondola installation
• Electronic control (Wurm)
• VI-LED lighting red and white
• Panorama sliding panes
• Year of construction: 2018

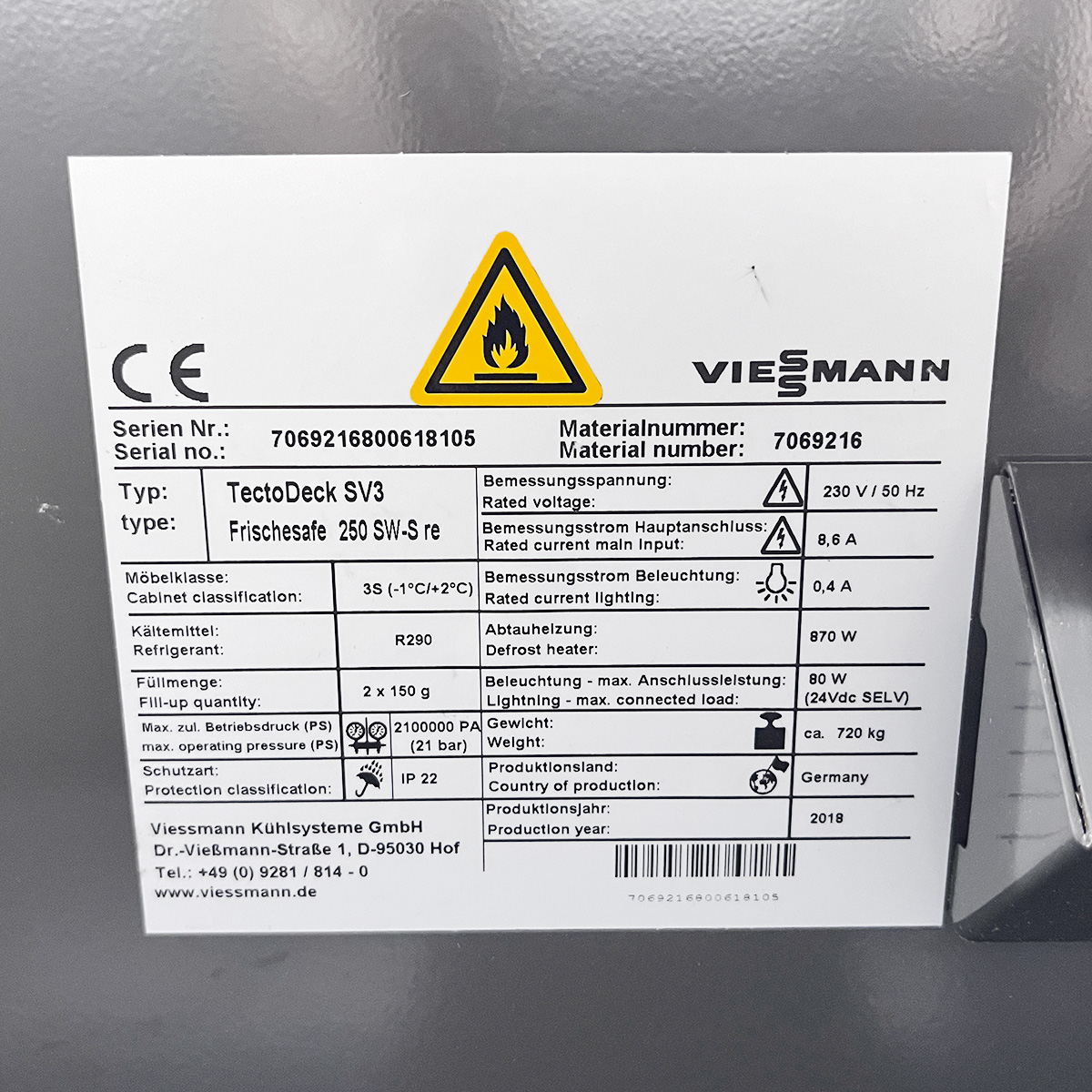

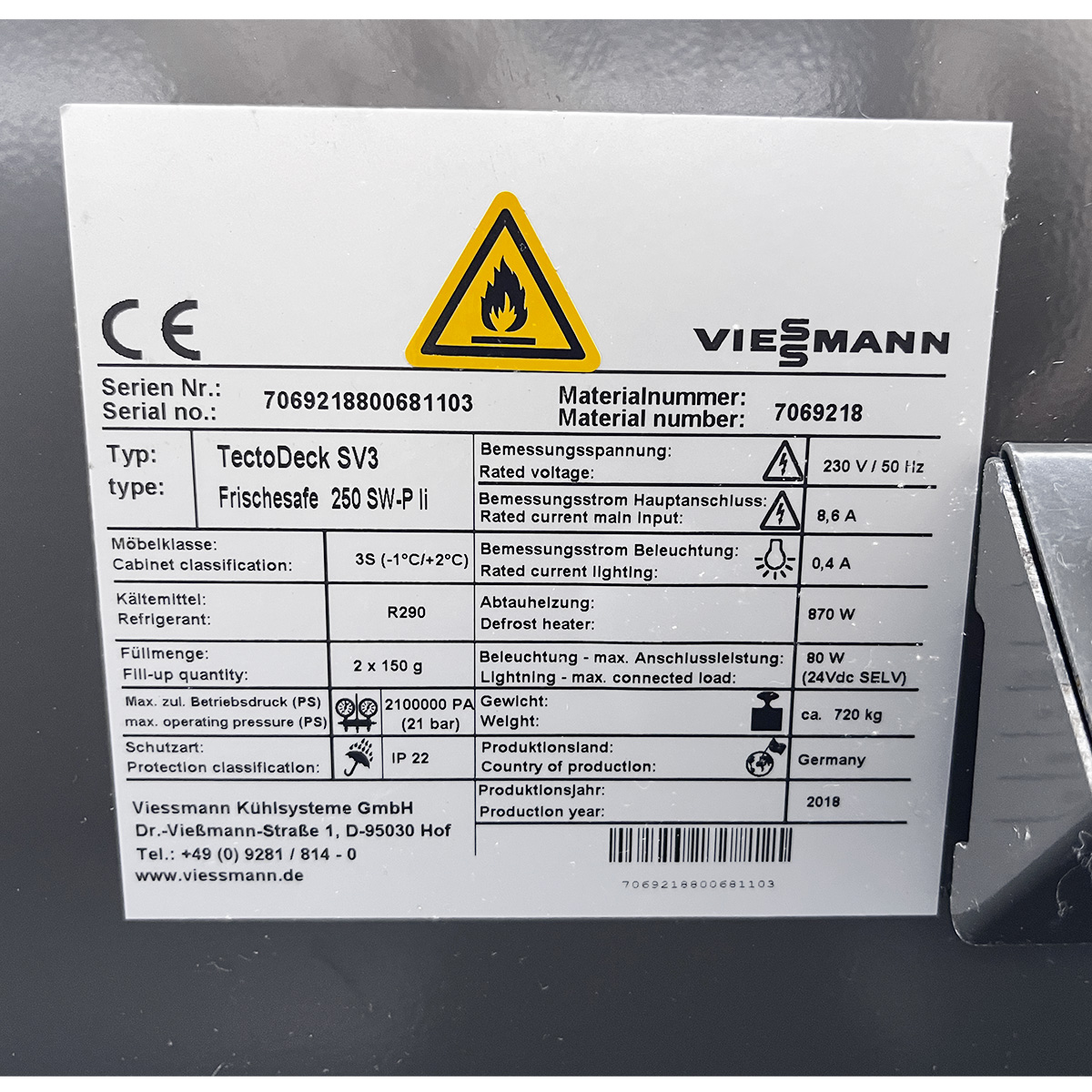

Technical details:

• Length: 5,000 mm (2x 2,500 mm)
• Depth: 1,075 mm
• Height: 1,600 mm
• Model: TectoDeck SV3 Freshness Safe 250
• Net content: 1010 l
• Temperature range: -1°C to +2°C
• Electrical supply: 230 V / 50 Hz
• Refrigerant: R290
• Energy consumption /24h: 32.16 kWh
• Defrost heating: 870 W
• Lighting - max. connected load: 80 W
• Rated current main connection: 8.6 A
• Rated current lighting: 0.4 A
• Installation area: 2.86 m²
• Product presentation area: 2.46 m²
• Filling quantity: 2 x 150 g
• Protection class: IP22
• Lighting: LED
• Material: High-quality steel and glass

Product features:

• Large presentation area: With a length of 5 meters, the TectoDeck SV3 offers plenty of space for an extensive product presentation. Perfect for the presentation of dairy products, drinks, ready meals and other chilled goods.
• Energy efficiency: Thanks to the innovative cooling technology from Viessmann, the TectoDeck SV3 is particularly energy efficient. This not only helps to reduce your operating costs, but also protects the environment.
• High-quality materials: The refrigerated shelf is made of robust and durable materials that ensure a long service life and high reliability. The stable shelves are resilient and offer sufficient load-bearing capacity for heavy products.
• Optimal cooling: The even and constant cooling ensures that your products always remain at the ideal temperature. This guarantees the freshness and quality of your goods.
• Lighting: Integrated LED lighting ensures an attractive and clearly visible presentation of your products. The energy-efficient lighting puts your goods in the best light and promotes sales.
• Easy to clean: The smooth surfaces and the well-thought-out design of the refrigerated shelf enable quick and easy cleaning. Hygiene standards are therefore easily met.
• Flexibility: Adjustable shelves and versatile design options allow you to adapt the refrigerated shelf to your individual needs. This allows you to present your products optimally and clearly.

Advantages:

• Maximum presentation area: Ideal for a comprehensive and attractive product presentation.
• Energy efficient: Save operating costs and protect the environment thanks to modern cooling technology.
• Durable and robust: High-quality materials and stable construction ensure a long service life.
• Easy to use: Adjustable shelves and easy cleaning make daily operations easier.

Areas of application:

• Supermarkets and grocery stores: Ideal for the presentation of dairy products, drinks, meat products and ready meals.
• Convenience stores: Perfect for the clear and attractive presentation of chilled goods in a small area.
• Gastronomy and hotel industry: Ideal for cooling and presenting food and drinks in the catering industry.

The Viessmann TectoDeck SV3 refrigerated shelf with a length of 5 meters is the perfect solution for an attractive, efficient and energy-efficient product presentation. Invest in quality and reliability so that you can always offer your customers fresh and optimally chilled goods.
