Electric Double-Deck Pallet Truck Jungheinrich ELS 18 – Year of Manufacture 2003 - Used

Used Electric Double-Deck Pallet Truck Jungheinrich ELS 18 - Efficient Material Handling for Warehouse & Logistics

The used electric double-deck pallet truck Jungheinrich ELS 18 is a powerful and highly efficient solution for modern warehouse and order-picking operations. Designed as a compact and ergonomic electric low-lift pallet truck, it enables fast, safe, and energy-efficient transport of goods in demanding intralogistics environments.

The Jungheinrich ELS 18 is ideal for companies aiming to optimize internal logistics, reduce handling times, and increase overall warehouse productivity.

Double-Deck Technology for Maximum Warehouse Efficiency

The Jungheinrich ELS 18 is engineered as a double-deck pallet truck, allowing the simultaneous transport of up to two pallets. This significantly increases material flow efficiency and reduces travel cycles within the warehouse.

Key benefits of the double-deck system:

• Transport of two pallets at the same time
• Higher throughput per movement
• Ideal for picking and loading operations
• Perfect for narrow warehouse aisles and retail logistics

With a lift height of up to 640 mm, the ELS 18 is perfectly suited for lower rack operations and efficient loading and unloading processes.

Compact, Powerful & Highly Manoeuvrable

The electric double-deck pallet truck stands out due to its compact design and excellent manoeuvrability. With a tight turning radius of approximately 1422 mm, it performs efficiently even in confined warehouse spaces.

Performance features:

• Strong acceleration for fast material handling

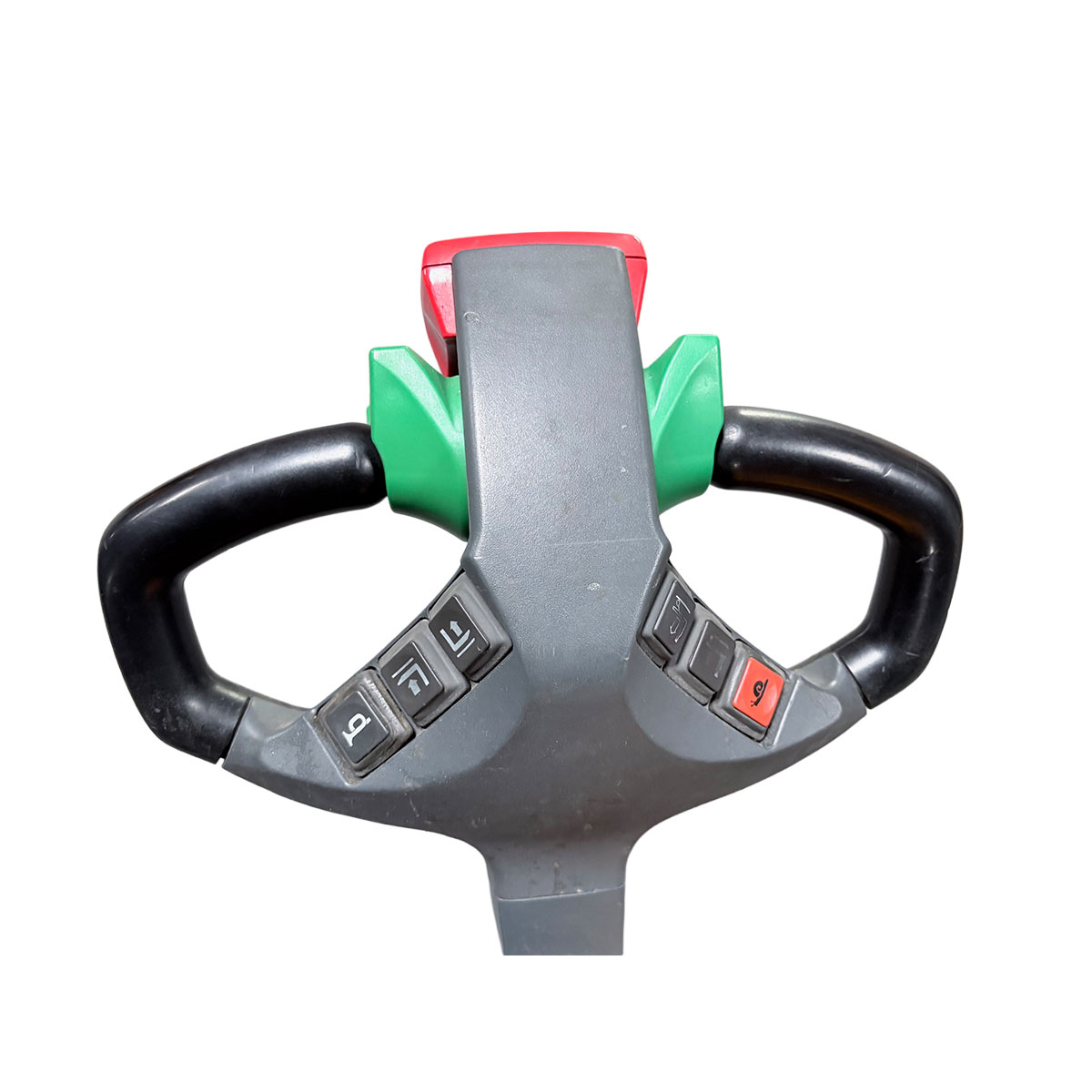

• Infinitely variable speed control via drive handle
• Quick direction changes without delay
• Constant travel speed even on inclines or declines
• Maximum speed up to approx. 6 km/h
• Load capacity up to 1,800 kg

Safety and Operator Comfort

The Jungheinrich ELS 18 is designed with a strong focus on safety and ergonomics. Suspension and damping elements ensure smooth operation even on slightly uneven floors.

Safety & comfort features:

• Spring-loaded and damped support wheels
• Load backrest for secure pallet handling
• “Turtle mode” for precise slow manoeuvring
• Tandem polyurethane (PU) wheels for stability and smooth running

These features make the ELS 18 especially suitable for supermarkets, logistics centres, and production facilities.

Optimised for Efficient Warehouse Processes

With a fork length of 1150 mm, the double-deck pallet truck is perfectly designed for EURO pallets (EPAL 1) and mesh boxes. Its combination of compact size, double-pallet handling, and strong lifting capacity ensures maximum efficiency in daily operations.

Typical applications:

• Warehousing and distribution centres
• Retail and supermarket logistics
• Order picking environments
• Production and shipping departments
• Small to medium-sized warehouse facilities

Technical Specifications – Jungheinrich ELS 18 (Used)

• Manufacturer: Jungheinrich
• Model: ELS 18
• Drive: Electric
• Load capacity: 1,800 kg
• Unladen weight (without battery): approx. 455 kg
• Motor power: 1.0 kW
• Lift height: up to 640 mm
• Fork length: 1,150 mm
• Turning radius: approx. 1,422 mm
• Speed: up to approx. 6 km/h
• Wheels: Tandem polyurethane (PU)

Tested Used Equipment – Ready for Immediate Use

This used electric double-deck pallet truck Jungheinrich ELS 18 has been fully technically inspected and is in perfect working condition. It offers a cost-effective alternative to new equipment while ensuring reliable performance in daily warehouse operations.
